Product Description

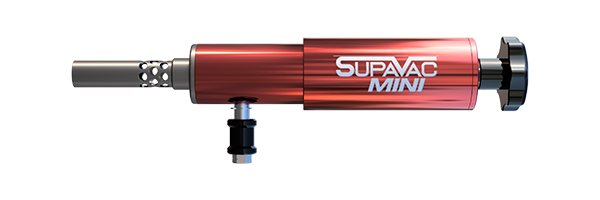

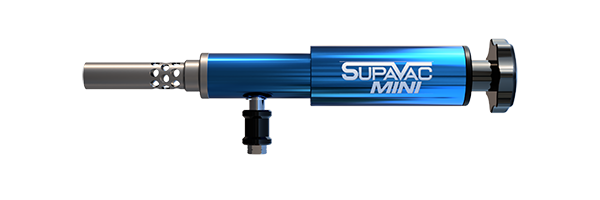

The SupaVac Mini Dragin is a compressed air-powered wet vacuum that never burns out. It is a powerful spill-control solution, designed to tackle your liquid clean-up challenges simply and affordably. Unlike regular wet vacuums, it has no moving parts to break down, burn out, or block up!

Say goodbye to burnt-out electric vacuums, clogged diaphragm pumps, and slow manual liquid and sludge transfer. SupaVac Mini Dragin is made to help you eliminate the need to hire expensive vacuum trucks for small liquid clean-up jobs, while also reducing the use of costly consumables like absorbents and rags for spill clean-up.

The SupaVac Mini Dragin Pump has been road-tested over the past 30 years in real Industrial liquid spill and waste disposal environments. It has consistently proven its durability and versatility time and time again.

Features

  • A single low-cost investment that will last for years
  • A powerful unit for cleaning up liquids and suspended solids more efficiently and quickly
  • A compact pump that reduces manual labour and the need for expensive clean-up consumables
  • Powered by compressed air
  • Safe and easy to use
  • Complete “ready-to-go” kit
  • Nothing to add other than your drum

Applications

  • Clean out machine tool sumps
  • Service trucks in the field for the recovery of waste oils
  • Vacuum out radiator coolant
  • Remove hydraulic machinery oil
  • Manage spill control (workshop floors, drum storage bunding)
  • Dewater underground fuel tanks
  • Remove fuel from vehicles
  • Remove sludge from engine wash machines
  • Remove water from tyre casings
  • Vacuum up and pump out solids suspended in liquid (metal chips, sludge, nuts, bolts, screws, small rocks, and dirt)

Technical Data

Available in 2 models, with a stainless-steel option.

SupaVac Mini Dragin DP357R

  • SupaVac Mini Dragin DP357R is a supercharged vacuum designed for smaller compressors.
  • Flow rate: 17 CFM @ 100 PSI
  • Vacuum up to: 105 L/minute
  • Vertical lift up to: 2.5 M
  • Pump out up to: 50 L/minute
Download Technical Brochure

SupaVac Mini Dragin DP484R

  • SupaVac Mini Dragin DP484R is a supercharged vacuum designed for larger compressors.
  • Flow rate: 30 CFM @ 100 PSI
  • Vacuum up to: 150 L/minute
  • Vertical lift up to: 3.5 M
  • Pump out up to: 105 L/minute
Download Technical Brochure

* These values were measured using water and standard kits. Please note that actual performance may vary depending on the fluid being collected, as well as the vertical lift, length, and diameter of the hose being used.
