SV250V
Solids Pump

OVERVIEW
FEATURES
APPLICATIONS
TECHNICAL DATA

Product Description

The SV250V Solids Pump is designed to transfer an extremely wide array of heavy sludges via 100 mm (4”) suction and discharge lines with Vertical Suction lift up to 30m.

The SV250V Pump has the ability to operate with various SupaVac Jet Packs ranging from 150 (71 L/sec) to 750 cfm (354 L/sec).

The SV250V Pump is a high vacuum loading system that can recover flowing slurries from up to 50 metres (164 ft) and deliver the same up to 1000 metres (1640 ft) whilst remaining a one person or fully automatic operation.

The SV250V Pump can transfer in excess of 60 m3/hr (264USGPM) @ SG1.0 single pump operation & double with Synchronised/Dual pump operation.

Operational Innovation with Next Generation Pneumatics Control box, Low (adjustable) discharge pressure providing increased safety with reduced air consumption supplied as standard.

Option for Dual pump operation for synchronised pumping with 2 units operating in parallel to double transfer rates up to 120 m3/hr @ SG 1.0.

For more than 30 years, SupaVac Solids Pumps have been employed worldwide servicing oil & gas, drill rigs, marine tank cleaning, mining, municipal, industrial, agriculture, and construction industries.

Features

  • ATEX Zone 2/CE conformity
  • Intrinsically safe
  • Manual or fully automatic operation
  • High vacuum and high airflow
  • Throughput capacity up to and in excess of 60 m3/hr (264USGPM) @ SG1.0
  • Variable air consumption 150 – 750 cfm (75 – 354 L/sec)
  • Robust and compact
  • Gravity feed capability

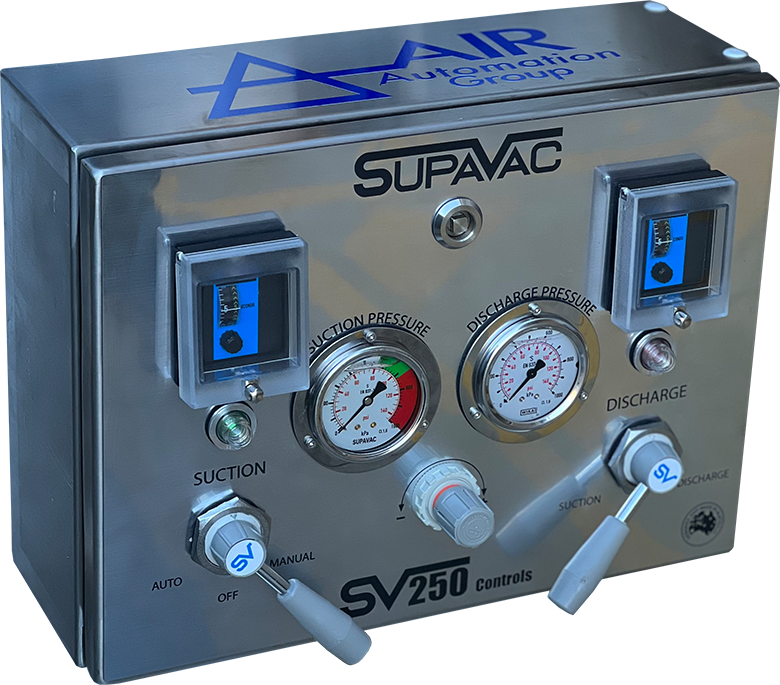

Next Generation Pneumatic control IP66 SST box provides a more user-friendly system with new countdown timers, indicators showing pump cycle, increased safety, usability & serviceability.

Standardised, completely interchangeable & quick connectivity minimising down time.

Applications

  • Drilling mud and cuttings transfer
  • Thickener de-sludge
  • Petrochemical tank cleaning
  • Heavy crude transfer
  • Barge and hull cleaning
  • Sump and shaft de-mucking
  • Tailings and ash pond cleaning
  • Raw effluent pond de-sludging
  • Hazardous waste recovery
  • Transfer of mining slurries




Technical Data

  • Height 165 cm (65”)
  • Width 129 cm (51”)
  • Length 120 cm (48”)
  • Weight 550 kg (1213 lb) with RF
  • Air consumption minimum 150/270 /400 /600/750 cfm (75/128/189/284/354 L/sec) at minimum 85psi (6 bar) to 100psi (7 bar) at the pump
  • Air supply connection 50 mm (2”)
  • Up to 25”Hg+ (85kPa) vacuum
  • Suction 100 mm (4”) BSP/Type B camlock
  • Discharge 100 mm (4”) BSP/Type A camlock
  • Handles solids to 70 mm (3”)
  • Carbon steel vessel
  • Also available in Class 3 carbon, 316 stainless steel or polyurethane coated tanks
  • Roll cage and weather cover
